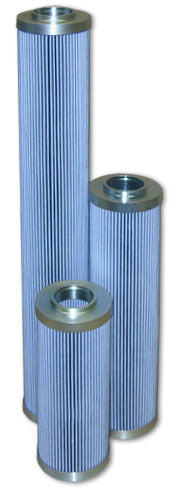

HY208-25-131HDV
Dimensions: (Inches)
| O.D. | I.D. Bottom | O.A.L |
|---|---|---|
| 1.75 | 0.813 | 7.875 |
Construction:
SOE, Viton
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Outer Body:
NONE
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Stailess Steel Wire Mesh
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
1lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 250 PSID
