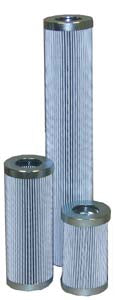

HY304-15-961VV
Dimensions: (Inches)
| O.D. | I.D. Bottom | O.A.L |
|---|---|---|
| 3.12 | 1.674 | 4.53 |
Construction:
SOE, Viton O-Ring
Beta Rating:
Beta 15{c} >= 1000 (ISO 16889 DFE)
Gasket Material:
Viton
End Cap:
Plated CS
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
3lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 3000 PSID
