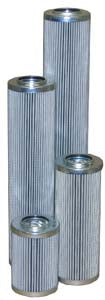

HY308-25-966B
Dimensions: (Inches)
| O.D. | I.D. Top | O.A.L |
|---|---|---|
| 3.1 | 1.7 | 8.2 |
Construction:
Buna O-Ring, SOE, 600 psi
Beta Rating:
Beta 25{c} >= 1000 (ISO 16889 & DFE)
Gasket Material:
Buna
End Cap:
Plated CS
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
1lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 225 °F
- Collapse Rating: 600 PSID
