HY308M-12-964V
Dimensions: (Inches)
| O.D. | I.D. Bottom | O.A.L |
|---|---|---|
| 3.16 | 2.04 | 8.1 |

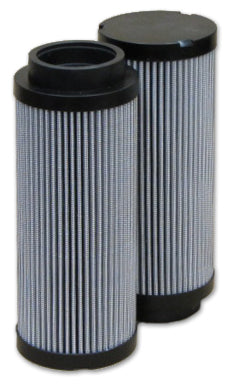

Construction:
Anodized Aluminum End Caps, Viton O-Ring, Coreless
Beta Rating:
Beta 12{c} >= 1000 (ISO 16889 DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Polyurethane
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
NONE
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
2.00lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 225 °F
- Collapse Rating: 150 PSID
