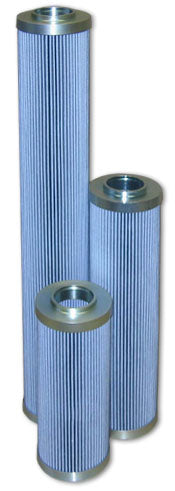

HY310-25-52HB
Dimensions: (Inches)
| O.D. | I.D. Bottom | O.A.L |
|---|---|---|
| 3.11 | 1.06 | 9.84 |
Construction:
SOE, BUNA, 3000 psid
Beta Rating:
Beta 25[c] >= 1000 (ISO 16889 DFE)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
1.5lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 3000 PSID
