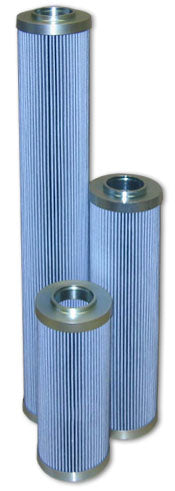

HY404-12-37VHD
Dimensions: (Inches)
| O.D. | I.D. Top | O.A.L |
|---|---|---|
| 3.6 | 1.89 | 4.19 |
Construction:
Viton O-Ring, SOE, 5000 psid
Beta Rating:
Beta 12{c} >= 1000 (ISO 16889 DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
2lbs
Operating Limits:
- Recommended Change Out: 50 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 5000 PSID
