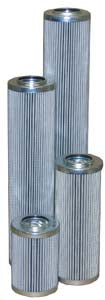

HY426-40W-89B
Dimensions: (Inches)
| O.D. | I.D. Top | O.A.L |
|---|---|---|
| 3.78 | 2.17 | 26 |
Construction:
SOE, Buna O-Ring
Nominal Efficiency:
40 Micron
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Stailess Steel Wire Mesh
Gasket Type:
O-Ring
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
4lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
