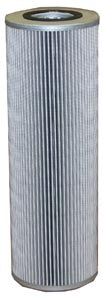

HY618-149MB-260
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 6 | 2.625 | 2.625 | 18 |
Construction:
Viton, DOE
Nominal Efficiency:
149 Micron
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Stailess Steel Wire Mesh
Gasket Type:
Flat
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
8lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 100 PSID
