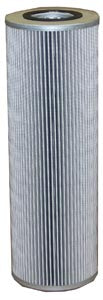

HY620-3-139E
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 5.6 | 3.69 | 3.69 | 20 |
Construction:
DOE, EPR
Beta Rating:
Beta 3{c} >= 1000 (ISO 16889 DFE)
Gasket Material:
EPR
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
Flat
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
8lbs
Operating Limits:
- Recommended Change Out: 35 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 290 PSID
