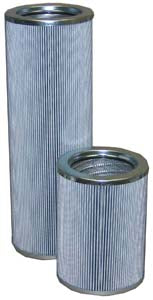

HY620-40-83B
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 6 | 4.13 | 4.13 | 19.312 |
Construction:
DOE, Buna O-Ring
Beta Rating:
Beta 40[c] >= 200 (ISO 16889)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Outer Body:
NONE
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
8lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 100 PSID
