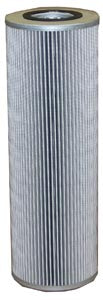

HY620-40W-139V
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 5.6 | 3.69 | 3.69 | 20 |
Construction:
DOE, Viton
Nominal Efficiency:
40 Micron
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Stailess Steel Wire Mesh
Gasket Type:
Flat
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
9lbs
Operating Limits:
- Recommended Change Out: 35 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 290 PSID
