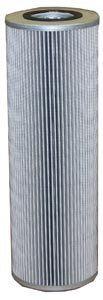

HY636-3B-350
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 6 | 3.5 | 3.5 | 36 |
Construction:
Buna, DOE
Beta Rating:
Beta 3{c} >= 1000 (ISO 16889 & DFE)
Gasket Material:
Buna
End Cap:
Plated CS
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
Flat
Inner Core:
Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
3lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 100 PSID
