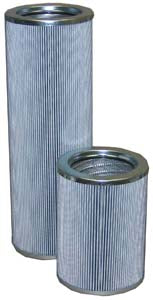

HY639-15-X83V
Dimensions: (Inches)
| O.D. | I.D. Top | O.A.L |
|---|---|---|
| 5.97 | 4.109 | 38.63 |
Construction:
SOE, VITON O-RING
Beta Rating:
Beta 15[c] >= 1000 (ISO 16889 DFE)
Gasket Material:
Viton
End Cap:
Corrosion Resistant CS/AL
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
2
Individual Filter Weight:
46lbs
Operating Limits:
- Recommended Change Out: 25 PSID
- Maximum Temperature: 250 °F
- Collapse Rating: 150 PSID
