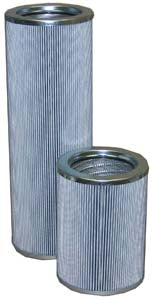

HY639-3-83B
Dimensions: (Inches)
| O.D. | I.D. Top | I.D. Bottom | O.A.L |
|---|---|---|---|
| 5.97 | 4.13 | 4.13 | 38.6 |
Construction:
DOE, Buna O-Ring
Beta Rating:
Beta 3[c] >= 1000 (ISO 16889 & & DFE)
Gasket Material:
Buna
End Cap:
Corrosion Resistant CS/AL
Outer Body:
NONE
Adhesive:
Epoxy
By-Pass:
NONE
Media Type:
Microglass supported both sides
Gasket Type:
O-Ring
Inner Core:
Electro-Tin Plated CS
Flow Direction:
OUT to IN
Quantity Per Case:
1
Individual Filter Weight:
15lbs
Operating Limits:
- Maximum Temperature: 225 °F
- Collapse Rating: 150 PSID
